FAQs
What's the 'standard' 4 pair wiring sequence?

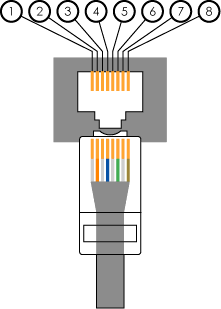

Wiring sequence T-568B
Pin
Colour
Pair
1
white/orange
2
2
orange/white
2
3
white/green
3
4
blue/white
1
5
white/blue
1
6
green/white
3
7
white/brown
4
8
brown/white
4
N.B. for an Ethernet crossover cable, swap pins 1 and 3, plus pins 2 and 6, i.e. pairs 2 and 3.
